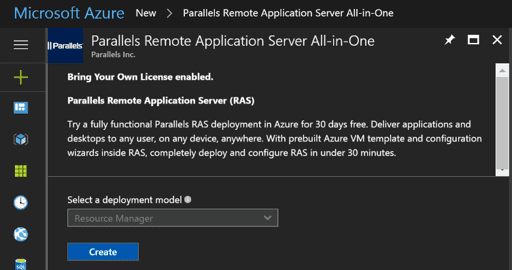

Azure Resource ManagerAzure Resource Manager – To let users try a free, fully functional Parallels Remote Appication Server (RAS) deployment in Azure for 30 days, we have an Azure Marketplace deployment available that performs an all-in-one installation of Parallels RAS on a single machine running on Azure IaaS

There are no prerequisites needed for this deployment. It’s ideal for setting up proof-of-concept environments or to test-drive all of our Parallels RAS functionality. Check out our Quick Start documentation, or watch an introductory video.

Join one of our below webinars to learn more.

 Webinar  Webinar

ARM Templates for Parallels RAS and Azure

Join us on the 7th of November 2017 – 11AM CET!



ARM Templates for Parallels RAS and Azure
Join us on the 2nd of November 2017 – 10AM PDT!

Introducing Freek Berson

Freek Berson, an end user computing enthusiast and Microsoft MVP on Remote Desktop Services, joined the Parallels RAS VIPP program as one of the founding members. He has a lot of hands-on experience with using Azure Resource Manager (ARM) to automate deployments. During conversations at one of our VIPP events this year, Freek mentioned the opportunities of using ARM to deploy larger, production-ready environments that would also include high availability.

Below, Freek shares with us how to create a Parallels RAS high-available deployment using Azure.

The Goal

Azure Resource Manager (ARM) fundamentally changed the Azure Cloud. ARM allows you to use declarative language to provision any combination of objects in Azure in the most efficient way. By using ARM, you can redeploy environments in multiple subscriptions consistently, and can also identically configure OTAP environments. ARM also comes with options to implement role-based access control and tagging of objects to create better insights into your monthly Azure invoice.

I decided to create a new ARM template to deploy an entire high-availability Parallels RAS deployment in Azure IaaS. I contacted Parallels to work together on publishing and sharing the results.

My main goal was to deploy Parallels RAS in a high-available setup to allow for fast (re)deployments of Parallels RAS. However, the ARM template can also be used to deploy production environments. I reached out to Parallels to join forces on getting the template on GitHub so others can use and contribute to the template as well.

Prerequisites

To be able to perform a successful deployment using this template, a couple of prerequisites need to be in place.

Active Directory Domain Services

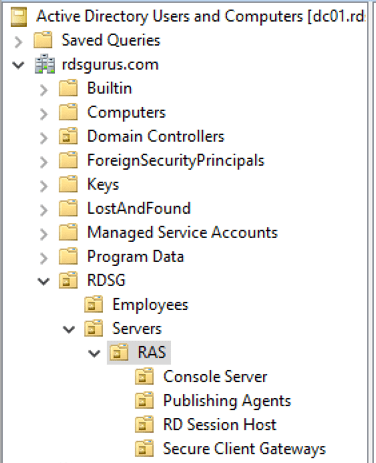

The Parallels RAS role services rely on Active Directory Domain Services (ADDS). ADDS needs to be in place prior to running this template. The bare minimum required is a single domain controller running in Azure IaaS and access to an account with domain admin credentials. If you want the Parallels RAS server to be placed in a specific folder, make sure you create the OU structure. In our example, we used the following OU structure.

Azure Resource Manager

Vnet and Subnet

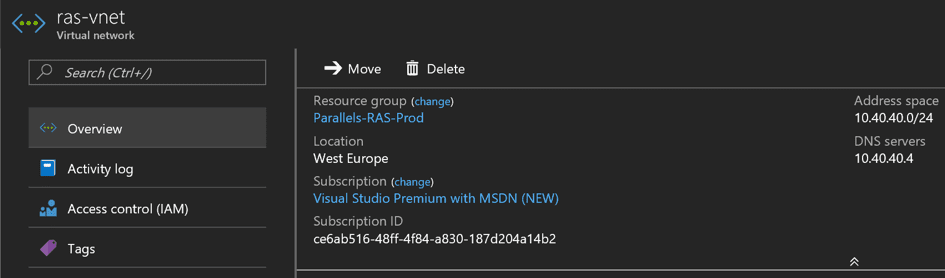

The ARM template will deploy several virtual machines in Azure IaaS and needs a Vnet and underlying Subnet to be available. An example configuration of a Vnet is shown below, where the Vnet is named “ras-vnet” with an address space of 10.40.40.0/24.

Azure Resource Manager

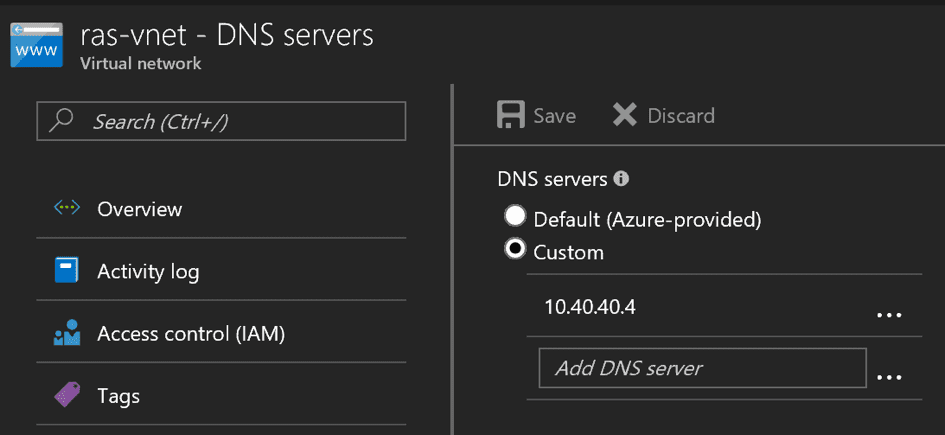

The Vnet needs to be configured with at least 1 DNS server pointing to a domain controller. In this example, 10.40.40.4 is the domain controller.

Azure Resource Manager

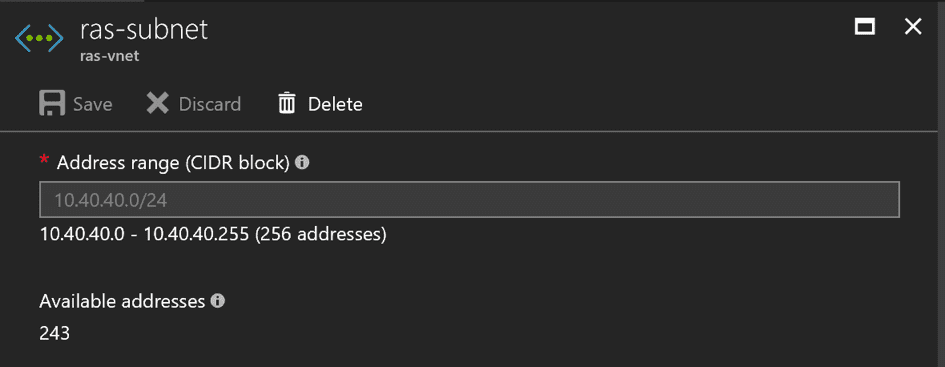

Within the Vnet, a Subnet is created with the name ras-subnet, containing the same address range as the Vnet. Using the same address range as the address space of the Vnet is obviously not a requirement, as long as you make sure the Subnet can reach the domain controller.

Azure Resource Manager

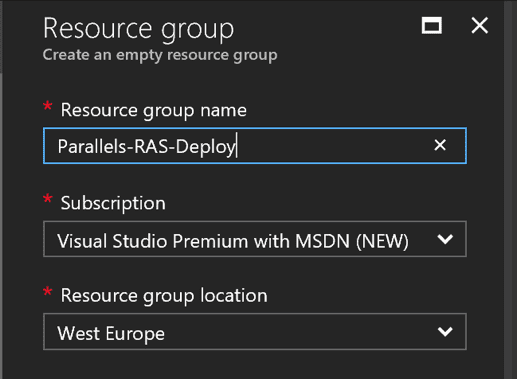

Preferably, a new and empty resource group is created where the Parallels RAS components of this ARM deployment will be created. This will allow for easy grouping of all components that the ARM template created, and an easy way to perform role-based access control. In case you are running this ARM template to create a temporarily proof-of-concept environment, using a dedicated resource group will also allow easy cleanup after the PoC is finished. You can also decide to not pre-create the resource group at this stage; you can do so during the deployment of the template later on.

Azure Resource Manager

Parameters for the Template

To customize the ARM deployment, parameters are used. This paragraph contains a detailed explanation of the parameters.

name Description Example
adDomainName Specifies the Active Directory Domain Services FQDN you want the Parallels RAS environment to be deployed in. contoso.com
adminPassword Specifies the Active Directory Domain Services password of a user with domain admin permissions.
adminUsername Specifies the Active Directory Domain Services username of a user with domain admin permissions. Adm_Berson
existingCustomImageNameRDSH Specifies the name of the Sysprepped Custom Template image you want to use (also enable useExistingCustomImage). RDSH-RDSG-Template-Image
existingCustomImageResourceGroup Specifies the resource group where the Sysprepped Custom Template image you want to use is located. RDSonAzureIaaS
existingSubnetName Specifies the name of the existing Subnet you want to use. ras-subnet
existingVnetName Specifies the name of the existing Vnet you want to use. ras-vnet
existingVnetResourceGroupName Specifies the resource group where the existing Vnet is located. Parallels-RAS-Prod
hostNamePrefixConsole Specifies the prefix of the hostname of the virtual machine that will host the console role. RAS-CON-
hostNamePrefixPublishingAgent Specifies the prefix of the hostname of the virtual machine that will host the publishing agent role. RAS-PA-
hostNamePrefixRDSessionHost Specifies the prefix of the hostname of the virtual machine that will host the session host role. RAS-RDSH-
hostNamePrefixSecureClientGateway Specifies the prefix of the hostname of the virtual machine that will host the secure client gateway role. RAS-SCG-
imageSKU Specifies the image SKU (OS version) you want the environment to be based on. 2016-Datacenter
internalIPAddressPrefix/24 Specifies the IP range to be used by the virtual machines. 10.40.40.
numberOfInstancesPublishingAgent Specifies the number of virtual machines that will host the publishing role. 2
numberOfInstancesRDSessionHost Specifies the number of virtual machines that will host the session host role. 2
numberOfInstancesSecureClientGateway Specifies the number of virtual machines that will host the client secure gateway role. 2
ouLocationConsole Specifies the existing organizational unit of Active Directory where the console server will be created. OU=Console Server, OU=RAS,OU=Servers ,OU=RDSG, DC=contoso, DC=com
ouLocationPublishingAgent Specifies the existing organizational unit of Active Directory where the publishing agent servers will be created. OU=Publishing Agents, OU=RAS, OU=Servers, OU=RDSG, DC=contoso, DC=com
ouLocationRDSessionHost Specifies the existing organizational unit of Active Directory where the session host servers will be created. OU=RD Session Host, OU=RAS, OU=Servers, OU=RDSG, DC=contoso, DC=com
ouLocationSecureClientGateway Specifies the existing organizational unit of Active Directory where the secure client gateway servers will be created. OU=Secure Client Gateways, OU=RAS,OU=Servers, OU=RDSG, DC=contoso, DC=com
projectTag Specifies a unique tag to be placed on all Azure Objects that are created. RAS Deployment
RASGroupNameRDSH Specifies the name of the RDSH Group within the Parallels RAS Console. RDS-Gurus-RDSH-Group
RASLicenseEmail Specifies the email address that will be used to license the trial. freek@rdsgurus.com
RASLicensePassword Specifies the Parallels account password that will be used to license the trial.
useExistingCustomImage Specifies whether or not to use an existing Sysprepped image for the RDSH Servers. No
virtualMachineSizeConsole Specifies the virtual machine size for the servers hosting the console role Standard_DS2_V2
virtualMachineSizePublishingAgent Specifies the virtual machine size for the servers hosting the publishing agent role Standard_DS2_V2
virtualMachineSizeRDSessionHost Specifies the virtual machine size for the servers hosting the session host role Standard_DS2_V2
virtualMachineSizeSecureClientGateway Specifies the virtual machine size for the servers hosting the secure client gateway role Standard_DS2_V2

Using the Template

The ARM template is available on Github at the following location: raw.githubusercontent.com/Parallels/RAS-PowerShell/master/ARM-templates-fberson/azuredeploy.json

Prior to using the template, make sure you’ve setup the prerequisites as discussed above. The next step is to copy the JSON template from GitHub and create a template on your Azure Subscription.

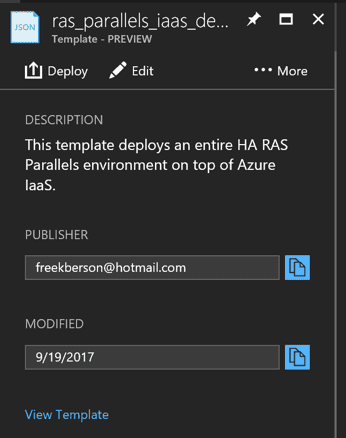

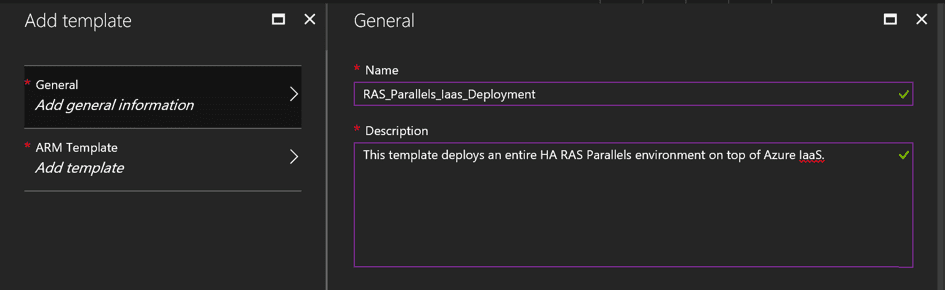

To do so, create a new template in the Azure Portal and provide values for the name and description. An example is shown below.

Azure Resource Manager

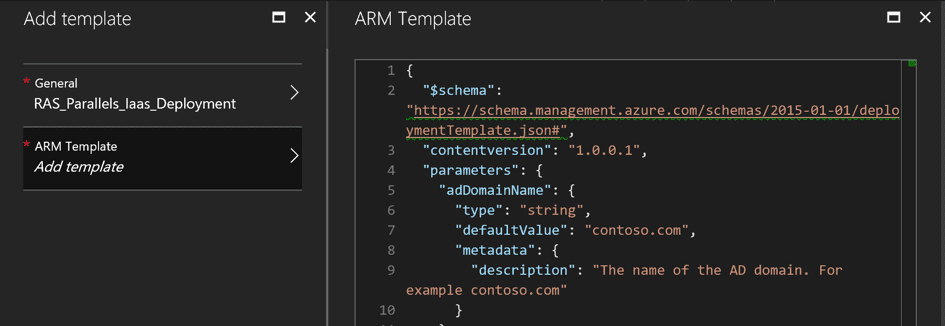

Next, click “Add template.” Remove the default code in the ARM Template section, copy in the JSON code from the GitHub location, and click “Ok.” Click “Add” to save the template.

Azure Resource Manager

You now have a copy of the template available in your Azure Subscription. To run the template, reopen it and click “Deploy.”

Azure Resource Manager

Decide in which resource group and region you want to deploy the template and provide the information. An example is shown below.

Azure Resource Manager

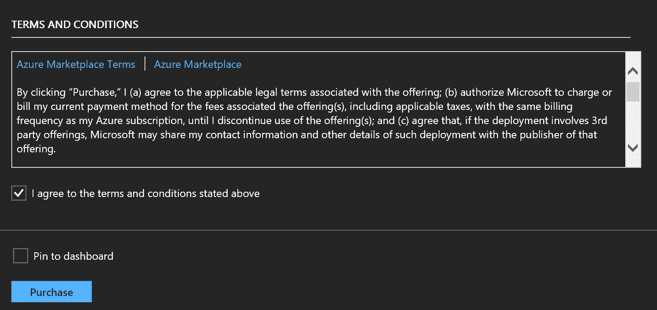

Provide values on the parameters to customize the deployment to your needs. For an explanation of the parameters, hover over the information icon for each parameter, or refer to the parameter table provided earlier in this article. When you are finished, accept the terms and click “Purchase.”

Azure Resource Manager

Wait for the deployment to complete. This should take approximately 30 minutes.

The End Results

After the template has been successfully deployed, a new highly available Parallels RAS deployment is available in your Azure IaaS environment.

End-User Experience

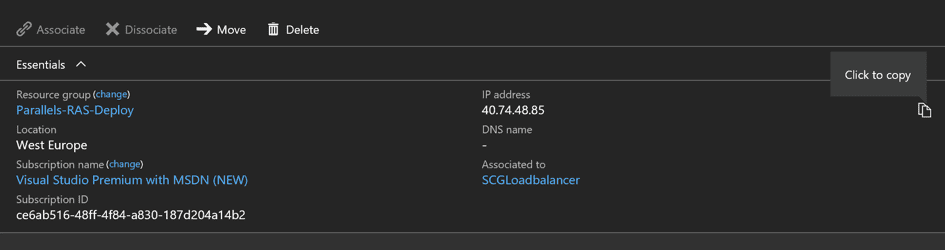

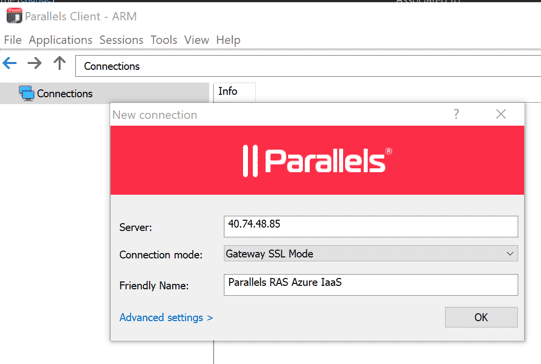

To test the end-user experience, download the Parallels RAS Client and create a new session. Provide the public IP Address taken from the Azure Portal.

Azure Resource Manager

Azure Resource Manager

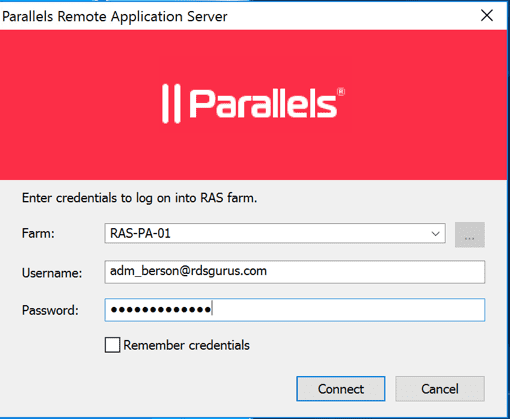

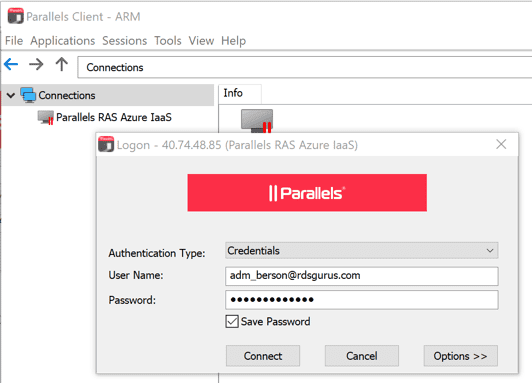

Connect to the created connection by providing the account you used as the parameter of the deployment.

Azure Resource Manager

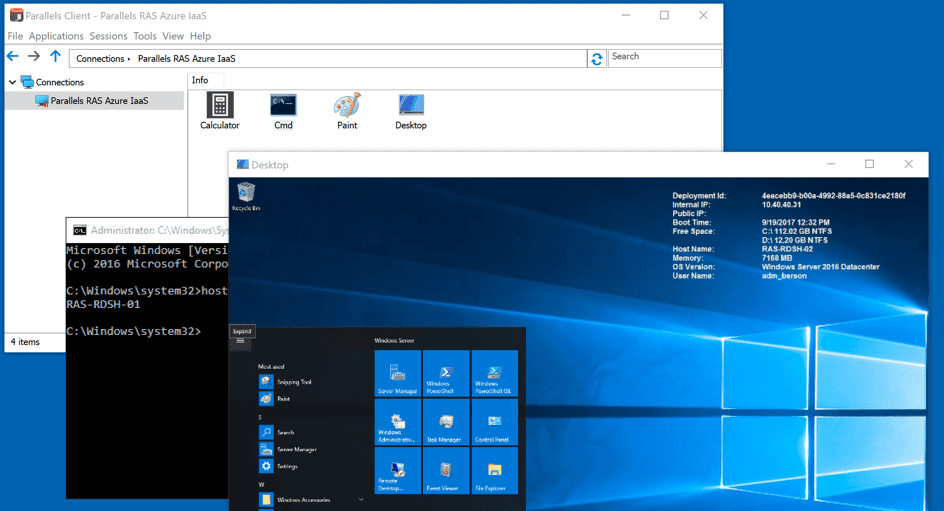

You should now be able to open the publish applications and desktop and test drive the Parallels RAS environment as an end user.

Azure Resource Manager

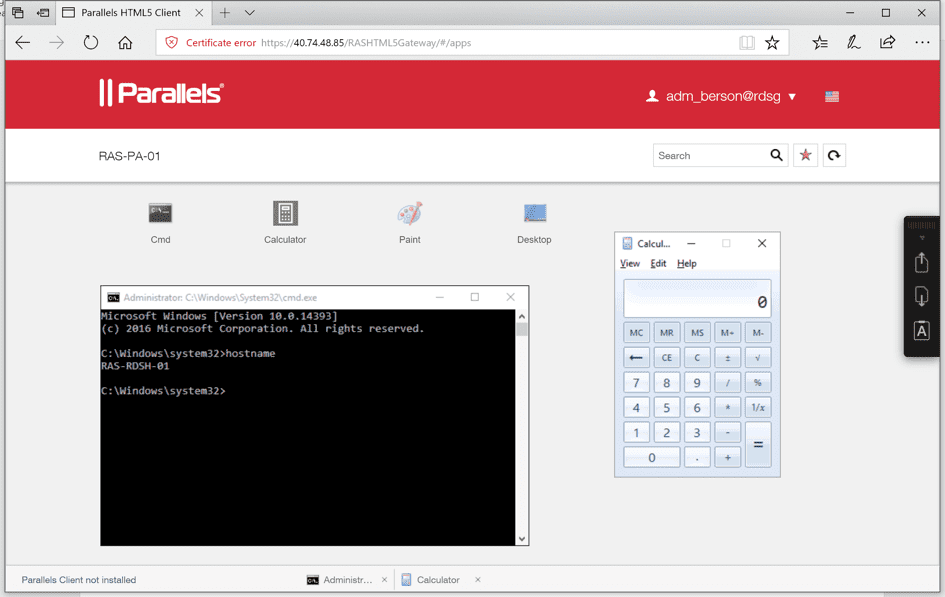

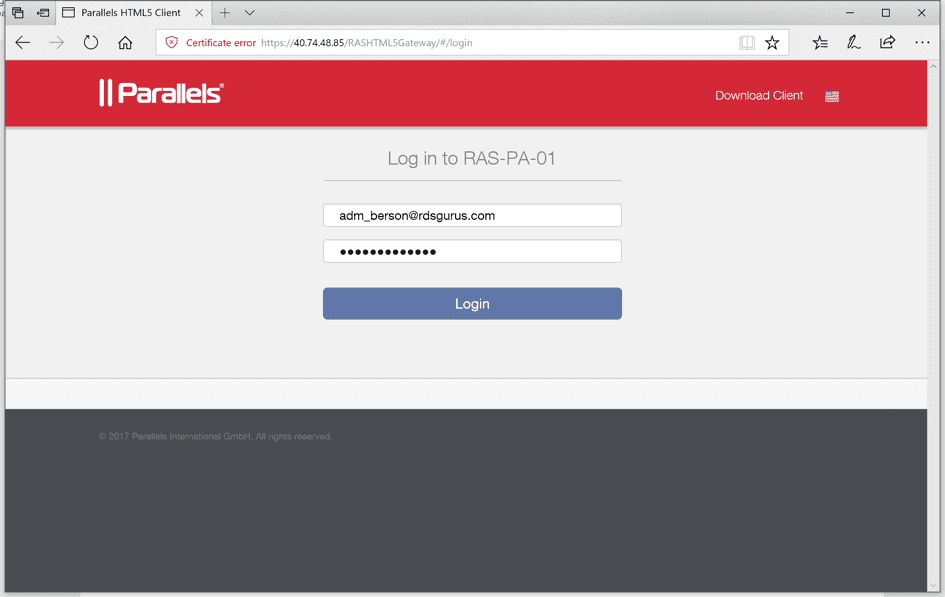

Optionally, you can also use the Parallels RAS HTM5 Gateway. To do so, open a web browser and go to https://<Public IP Address>/RASHTML5Gateway. Note that because this deployment does not yet autoconfigure SSL certificates, you will get a warning about the certificate.

Azure Resource Manager

Azure Resource Manager

Admin Experience

The ARM deployment installs the Parallels RAS Console and Parallels RAS PowerShell modules on the server that was set as console server using the parameters (default value RAS-CON-01). If you open an RDP connection to the server, you are able to use the Parallels RAS Console and PowerShell module. Open the Parallels RAS Console from the Start menu and provide the primary publishing server as provided as the ARM parameter (default value RAS-PA-01). Enter the admin credentials provided as ARM parameters.

Azure Resource Manager

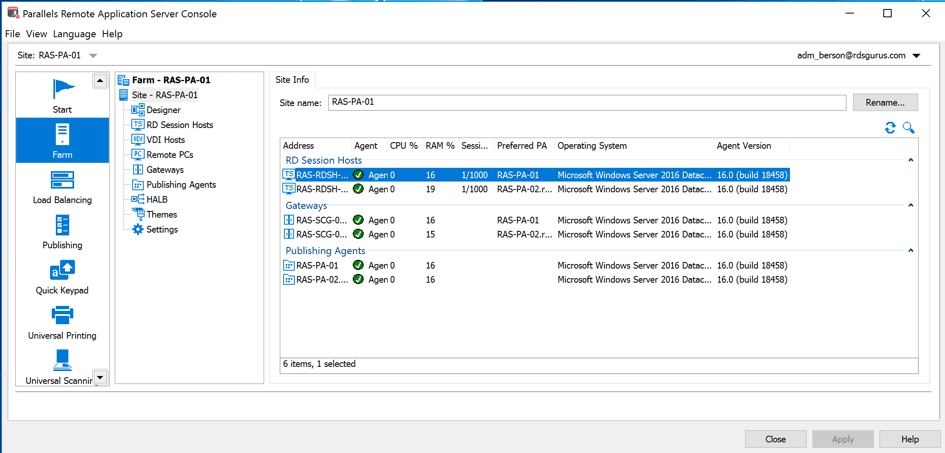

The ARM deployment has deployed all Parallels RAS Roles on multiple servers, and the site overview should look like the screenshot below. You can now start using the Parallels RAS Console to further customize your environment.

Azure Resource Manager
