How to get the best results in the Recognize Text tool

The Recognize Text tool is one of the new tools in Parallels® Toolbox 5.0, released on July 27, 2021. This tool “extracts” text from a photo or image. Even though Recognize Text has only been available for a little more than a month, it has quickly become my second-most-used tool in Parallels Toolbox. (FYI, my most-used tool is Download Video.)

I have discovered a few tricks for getting the best results from the Recognize Text tool, and I present these and a few other caveats about this tool in this blog post.

Basic Operation

As is true for all the tools in Parallels Toolbox, the basic operation of the Recognize Text tool is straightforward and simple: drag an image to the tool, select the language, and extract the text. My previous blog post shows this in operation.

Getting the best results

Tip #1 Higher resolution scans usually deliver the best results.

If you have the option of different dots per inch (dpi), for example if you are scanning a photograph, a higher dpi setting will usually deliver better results. See Figure 1. (The image in figures 1, 2, and 3 is the back cover of Object-Oriented Programming for the Macintosh, image courtesy of the author.)

Recognize text Tool
Figure 1_Increased DPI can improve results

Tip #2 Selecting specific portions of the image can improve results.

When the text you want to extract is bordered by graphics, selecting only the text area can improve results. See Figure 2

Recognize text Tool
Figure 2_Selecting a portion of a complex layout can improve results

Tip #2.5 Enlarge the Recognize Text window to get a larger image for easier portion selection.

Having trouble selecting an area to be scanned?  Just enlarge the Recognize Text window first. See Figure 3.

Recognize text Tool
Figure 3_Resizing the Recognize Text window will enlarge the thumbnail

Tip #3 Straightening text to make it horizontal can improve results.

See figure 4. (Image in figure 4 and figure 6 are courtesy of the photographer.) I straightened the text in this image using the image manipulation tools in Microsoft PowerPoint.

Recognize text Tool
Figure 4_Rotating an image so that the text is horizontal can improve results

Tip #4 Vertical text

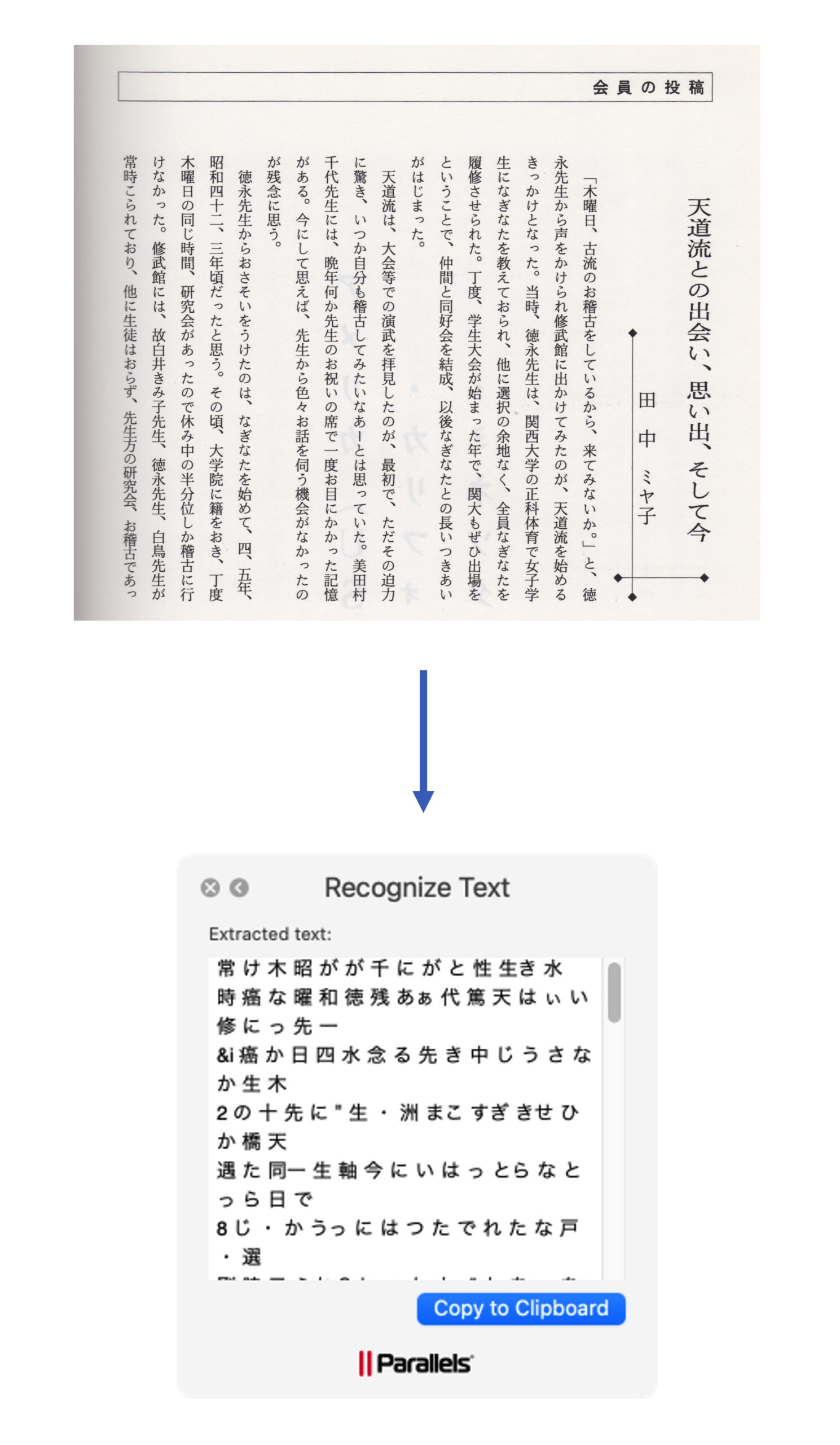

Some languages, for example, Japanese and Chinese, are often written vertically. Currently, Recognize Text does not support vertical text. However, the engineering team at Parallels knows that vertical text is very important, and they have already begun working to add this support to the Recognize Text tool. Watch for an update in this blog post. (See Figure 5 from 眞月—二十五周年を迎えて, 眞月会, 1994)

Recognize text Tool
Figure 5_Currently Recognize Text does not support vertical text

Tip #5 Text with multiple, mixed languages – don’t bother even trying.

Tip #6 Fancy, ornate calligraphic fonts, or handwriting – don’t bother even trying.

(See Figure 6. The image in this figure is from BiblioficDesigns.)


Recognize text Tool
Figure 6_Hardwriting and fancy, ornate calligraphic fonts are not supported

I hope these tips help you in your use of the Recognize Text tool. Let us know in the Forums if you have some additional tips to add.
